Servo Direct Drive Pump
Servo Direct Drive Pump
Servo Direct Drive Pump
Servo Direct Drive Pump
Servo Direct Drive Pump
Servo Direct Drive Pump

Servo Direct Drive Pump

Pressure performance: Maximum peak pressure of 413Mpa (60000PSI); The regular continuous working pressure is 320-380Mpa (46000-55000PSI), suitable for the majority of glass, metal, and stone cutting needs.

Consult Now Tel: 400-8058-576 Email

Detailed introduction

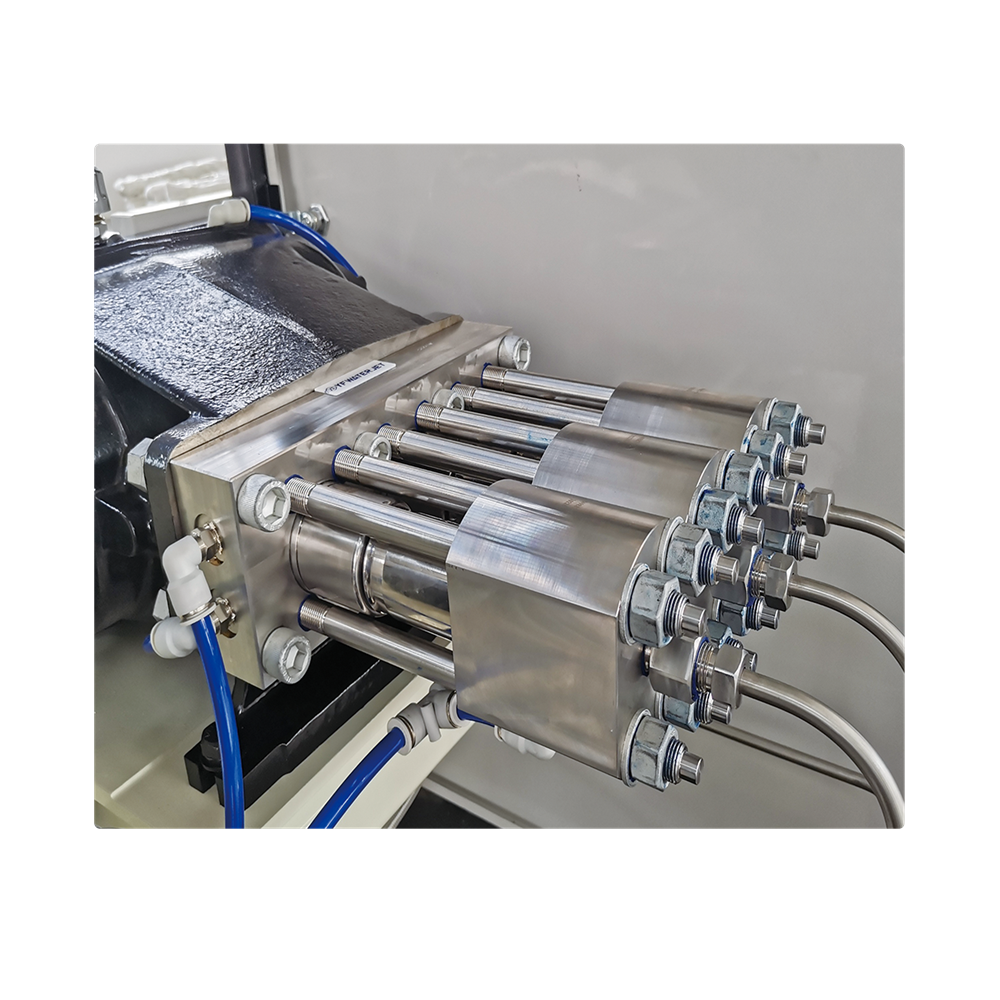

1. Pressure performance: Maximum peak pressure of 413Mpa (60000PSI); The regular continuous working pressure is 320-380Mpa (46000-55000PSI), suitable for the majority of glass, metal, and stone cutting needs.

2. Waterway specifications: The maximum single nozzle diameter is 0.3mm, the maximum maximum drainage capacity is 3.5L/min, and the high flow rate ensures the cutting speed of thick plates.

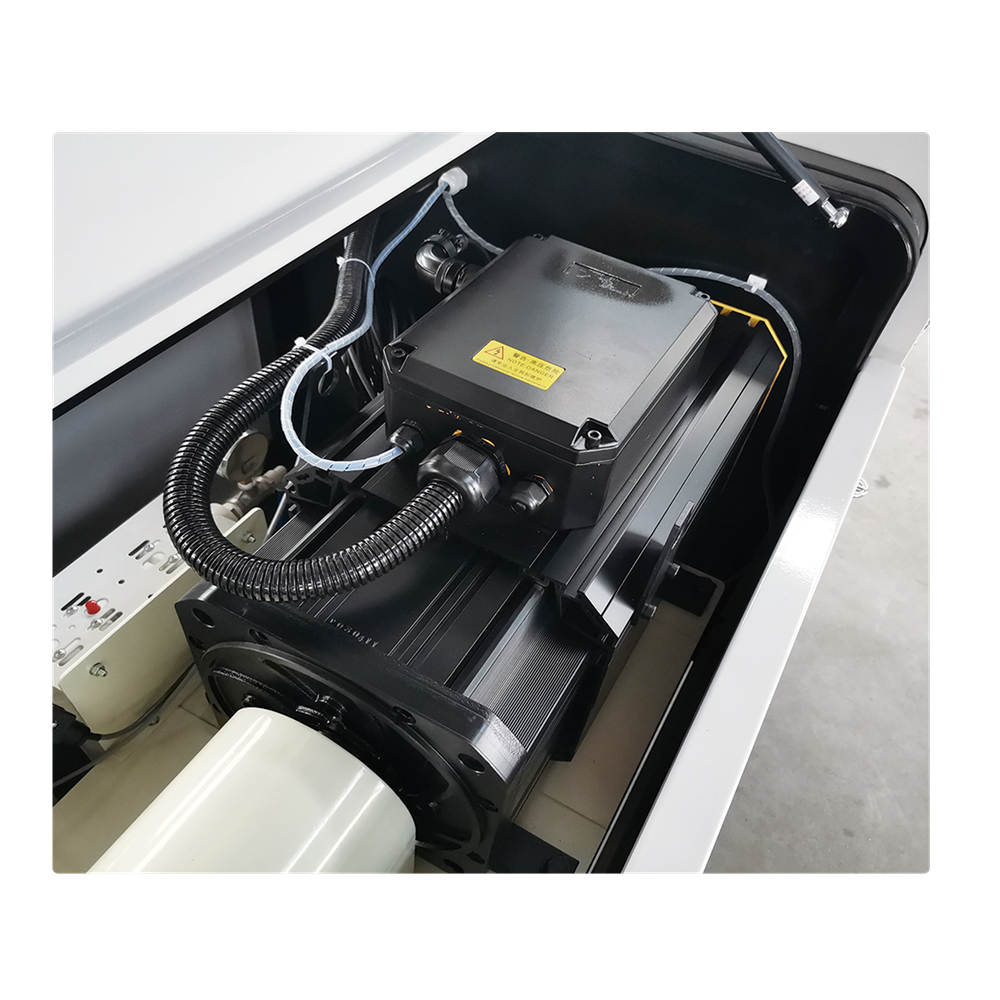

3. Motor configuration: The main motor has a power of 15kW (20hp), sufficient power, and fast start stop response.

4. Appearance and weight: The overall dimensions of the machine are 1700mm × 900mm × 1150mm, with a net weight of 680kg. The structure is compact and occupies a small area.
